KNK Art No.: KM0421389

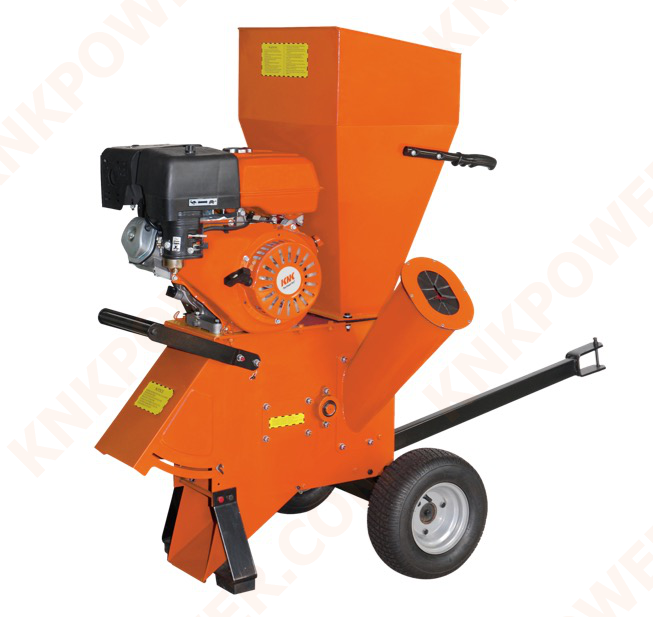

389CC SHREDDER CHIPPER
Engine: KMG410 389cc (13HP)Air cooled
Max.chipping capacity: Ф100mm(4")
CTN Size: 82x49x116cm
N.W./G.W.: 105/112kgs
20'FCL: 66PCS
Max.chipping capacity: Ф100mm(4")
CTN Size: 82x49x116cm
N.W./G.W.: 105/112kgs
20'FCL: 66PCS
Product Net Weight
105000g ≈ 105 kgs ≈ 3703.7oz ≈ 231.48lbs
This machine is equiped with engine KMG410 >> Go to engine's page
Related Brands (Replacement Parts)
Related Categories
↘︎SPARE PARTS LIST
KM0421389 MACHINERY
| No. | KNK Art No. | Description | Qty | Button |
|---|
| 1 | KM0421389-M1 | rubber foot | 2 | More Info |
| 2 | KM0421389-M2 | leg | 1 | More Info |
| 3 | KM0421389-M3 | flat washer | 20 | More Info |
| 4 | KM0421389-M4 | hex nut | 20 | More Info |
| 5 | KM0421389-M5 | lock washer | 20 | More Info |
| 6 | KM0421389-M6 | hex bolt | 1 | More Info |
| 7 | KM0421389-M7 | discharge chute | 1 | More Info |
| 8 | KM0421389-M8 | movable door | 1 | More Info |
| 9 | KM0421389-M9 | tube | 3 | More Info |
| 10 | KM0421389-M10 | screen | 1 | More Info |
| 11 | KM0421389-M11 | side door plate | 2 | More Info |
| 12 | KM0421389-M12 | hitch pin | 2 | More Info |
| 13 | KM0421389-M13 | door axle | 2 | More Info |
| 14 | KM0421389-M14 | spacer I | 4 | More Info |
| 15 | KM0421389-M15 | spacer II | 8 | More Info |
| 16 | KM0421389-M16 | spacer III | 4 | More Info |
| 17 | KM0421389-M17 | hammer | 16 | More Info |
| 18 | KM0421389-M18 | spacer VI | 4 | More Info |
| 19 | KM0421389-M19 | roll pin | 4 | More Info |
| 20 | KM0421389-M20 | hammer axle | 4 | More Info |
| 21 | KM0421389-M21 | blade | 2 | More Info |
| 22 | KM0421389-M22 | flat HD SCR | 6 | More Info |
| 23 | KM0421389-M23 | box frame side left | 1 | More Info |
| 24 | KM0421389-M24 | wheel | 2 | More Info |
| 25 | KM0421389-M25 | wheel support | 1 | More Info |
| 26 | KM0421389-M26 | blade cover plate | 1 | More Info |
| 27 | KM0421389-M27 | wire circ lip 1 | 1 | More Info |
| 28 | KM0421389-M28 | Washer (right) | 1 | More Info |
| 29 | KM0421389-M29 | chipping chute | 1 | More Info |
| 30 | KM0421389-M30 | bearing seat | 2 | More Info |
| 31 | KM0421389-M31 | ball bearing | 2 | More Info |
| 32 | KM0421389-M32 | spacer(right) | 1 | More Info |
| 33 | KM0421389-M33 | impeller | 1 | More Info |
| 34 | KM0421389-M34 | key | 1 | More Info |
| 35 | KM0421389-M35 | rear board | 1 | More Info |
| 36 | KM0421389-M36 | engine seat | 1 | More Info |
| 37 | KM0421389-M37 | tool box | 1 | More Info |
| 38 | KM0421389-M38 | rubber gasket | 1 | More Info |
| 39 | KM0421389-M39 | hopper | 1 | More Info |
| 40 | KM0421389-M40 | handles | 1 | More Info |
| 41 | KM0421389-M41 | hook | 2 | More Info |
| 42 | KM0421389-M42 | hex bolt | 20 | More Info |
| 43 | KM0421389-M43 | burn-proof net | 1 | More Info |
| 44 | KM0421389-M44 | clutch | 1 | More Info |
| 45 | KM0421389-M45 | V-belt | 1 | More Info |
| 46 | KM0421389-M46 | pulley cover | 1 | More Info |
| 47 | KM0421389-M47 | Belt cover bracket | 1 | More Info |
| 48 | KM0421389-M48 | spacer | 1 | More Info |
| 49 | KM0421389-M49 | pulley | 1 | More Info |
| 50 | KM0421389-M50 | special washer(left) | 1 | More Info |
| 51 | KM0421389-M51 | washer (right) | 1 | More Info |
| 52 | KM0421389-M52 | box frame side | 1 | More Info |
| 53 | KM0421389-M53 | wheel tube | 2 | More Info |
| 54 | KM0421389-M54 | wheel axel | 1 | More Info |
| 55 | KM0421389-M55 | front handle | 2 | More Info |
| 56 | KM0421389-M56 | handle part | 2 | More Info |
| 57 | KM0421389-M57 | box holder | 2 | More Info |
| 58 | KM0421389-M58 | adjusting block | 2 | More Info |
| 59 | KM0421389-M59 | hitch trailer | 1 | More Info |
| 60 | KM0421389-M60 | hitch pin | 2 | More Info |
| 61 | KM0421389-M61 | adjusting bolt | 2 | More Info |
