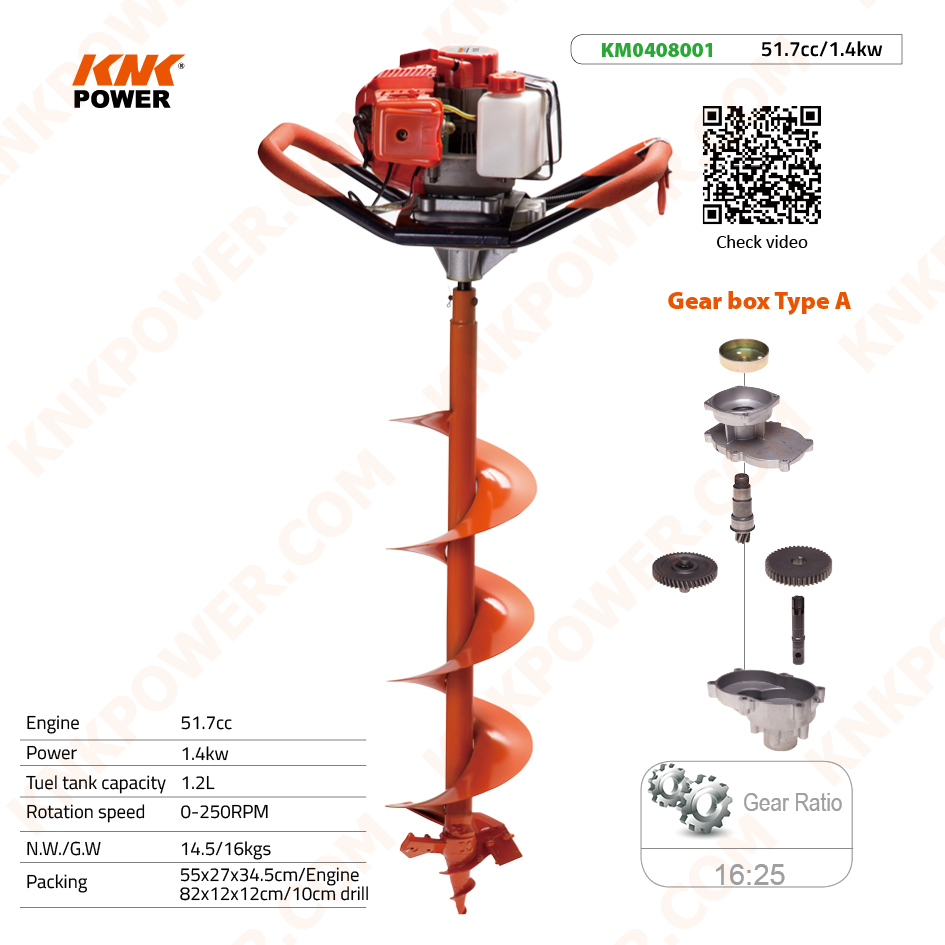

KNK Art No.: KM0408001
51.7CC ENGINE GROUND AUGER DRILL
Engine: 51.7cc
Power: 1.4kw
Fuel tank capacity: 1.2L
Rotation speed: 0-250RPM
N.W./G.W.: 14.5/16kgs
Packing: 55x27x34.5cm/Engine
The 2rd Generation gearbox
Power: 1.4kw
Fuel tank capacity: 1.2L
Rotation speed: 0-250RPM
N.W./G.W.: 14.5/16kgs
Packing: 55x27x34.5cm/Engine
The 2rd Generation gearbox
Product Net Weight
14500g ≈ 14.5 kgs ≈ 511.46oz ≈ 31.97lbs
Related Brands (Replacement Parts)
Related Categories
↘︎SPARE PARTS LIST
| No. | KNK Art No. | Description | Qty | Button |
|---|
| E1 | KM0408001-E1 | SCREW | 1 | More Info |
| E2 | KM0408001-E2 | RATCHET | 1 | More Info |
| E3 | KM0408001-E3 | STARTER ROPE REEL | 1 | More Info |
| E4 | KM0408001-E4 | STARTER ROPE | 1 | More Info |
| E5 | KM0408001-E5 | RECOIL SPRING | 1 | More Info |
| E6 | KM0408001-E6 | STARTER BODY | 1 | More Info |
| E7 | KM0408001-E7 | STARTER HANLE | 1 | More Info |
| E8 | KM0408001-E8 | * | 1 | More Info |
| E9 | KM0408001-E9 | SCREW M5*20 | 5 | More Info |
| E10 | KM0408001-E10 | STARTER POLE | 2 | More Info |
| E11 | KM0408001-E11 | RUBBER CUSHION | 1 | More Info |
| E12 | KM0408001-E12 | START GASKET | 1 | More Info |
| E13 | KM0408001-E13 | START REEL | 1 | More Info |
| E14 | KM0408001-E14 | SPRING | 1 | More Info |
| E18 | KM0408001-E18 | OIL SEAL | 1 | More Info |
| E19 | KM0408001-E19 | CRANK CASE | 1 | More Info |
| E20 | KM0408001-E20 | CRANK CASE GASKET | 1 | More Info |
| E21 | KM0408001-E21 | BEARING 6206/P5 | 2 | More Info |
| E22 | KM0408001-E22 | CRANK SHAFT | 1 | More Info |
| E23 | KM0408001-E23 | KEY 3*13 | 1 | More Info |
| E24 | KM0408001-E24 | PIN B5*12 | 2 | More Info |
| E25 | KM0408001-E25 | RUBBER CUSHION | 2 | More Info |
| E26 | KM0408001-E26 | CRANK CASE | 1 | More Info |
| E28 | KM0408001-E28 | PIN B4*10 | 2 | More Info |
| E29 | KM0408001-E29 | OIL SEAL | 1 | More Info |
| E30 | KM0408001-E30 | SCREW M5*30 | 4 | More Info |
| E31 | KM0408001-E31 | FLY WHEEL | 1 | More Info |
| E32 | KM0408001-E32 | NUT M8 | 1 | More Info |
| E33 | KM0408001-E33 | IGNITION | 1 | More Info |
| E34 | KM0408001-E34 | BOLT M5*20 | 2 | More Info |
| E35 | KM0408001-E35 | CORD COMP. | 1 | More Info |
| E36 | KM0408001-E36 | WASHER B | 2 | More Info |
| E37 | KM0408001-E37 | SPRING | 1 | More Info |
| E38 | KM0408001-E38 | EXPANDER | 2 | More Info |
| E39 | KM0408001-E39 | WASHER | 2 | More Info |
| E40 | KM0408001-E40 | SCREW PIN | 2 | More Info |
| E41 | KM0408001-E41 | FAN COVER | 1 | More Info |
| E42 | KM0408001-E42 | BOLT M5*25 | 4 | More Info |
| E43 | KM0408001-E43 | BEARING | 1 | More Info |
| E44 | KM0408001-E44 | RING | 2 | More Info |
| E45 | KM0408001-E45 | PISTON | 1 | More Info |
| E46 | KM0408001-E46 | PISTON PIN | 1 | More Info |
| E47 | KM0408001-E47 | BOLT M5*12 | 3 | More Info |
| E48 | KM0408001-E48 | PISTON RING | 2 | More Info |
| E49 | KM0408001-E49 | CYLINDER GASKET | 1 | More Info |
| E50 | KM0408001-E50 | CYLINDER | 1 | More Info |
| E51 | KM0408001-E51 | SCREW M5*20 | 4 | More Info |
| E52 | KM0408001-E52 | GUIDE COVER ASSY. | 1 | More Info |
| E53 | KM0408001-E53 | SPARK PLUG | 1 | More Info |
| E54 | KM0408001-E54 | SPRING | 1 | More Info |
| E55 | KM0408001-E55 | PLUG CAP | 1 | More Info |
| E56 | KM0408001-E56 | CAP | 1 | More Info |
| E57 | KM0408001-E57 | COVER | 1 | More Info |
| E58 | KM0408001-E58 | PLUG | 1 | More Info |
| E59 | KM0408001-E59 | MUFFLER GASKET | 1 | More Info |
| E60 | KM0408001-E60 | MUFFLER | 1 | More Info |
| E61 | KM0408001-E61 | BOLT | 2 | More Info |
| E63 | KM0408001-E63 | MUFFLER COVER | 1 | More Info |
| E64 | KM0408001-E64 | ADMITTING PIPE GASKET | 1 | More Info |
| E65 | KM0408001-E65 | ADMITTING PIPE | 1 | More Info |
| E66 | KM0408001-E66 | CARBURETOR GASKET | 1 | More Info |
| E67 | KM0408001-E67 | CARBURETOR | 1 | More Info |
| E71 | KM0408001-E71 | INSIDE COVER | 1 | More Info |
| E72 | KM0408001-E72 | CHOKE | 1 | More Info |
| E74 | KM0408001-E74 | WASHER 5 | 2 | More Info |
| E75 | KM0408001-E75 | WASHER 5 | 2 | More Info |
| E76 | KM0408001-E76 | SCREW M5*55 | 2 | More Info |
| E77 | KM0408001-E77 | AIR FILTER | 1 | More Info |
| E80 | KM0408001-E80 | OUTSIDE COVER | 1 | More Info |
| E81 | KM0408001-E81 | SCREW M5*16 | 3 | More Info |
| E82 | KM0408001-E82 | STARTER | 1 | More Info |
| E83 | KM0408001-E83 | FUEL FILTER | 1 | More Info |
| E84 | KM0408001-E84 | FUEL PIPE | 1 | More Info |
| E85 | KM0408001-E85 | PLUG | 1 | More Info |
| E86 | KM0408001-E86 | FUEL PIPE | 1 | More Info |
| E87 | KM0408001-E87 | FUEL TANK | 1 | More Info |
| E88 | KM0408001-E88 | FUEL TANK LID | 1 | More Info |
| E89 | KM0408001-E89 | O RING | 1 | More Info |
| E90 | KM0408001-E90 | INLET | 1 | More Info |
| E91 | KM0408001-E91 | INSIDE COVER | 1 | More Info |
| E92 | KM0408001-E92 | LID | 1 | More Info |
| E93 | KM0408001-E93 | CHAIN | 1 | More Info |
| E94 | KM0408001-E94 | FUEL TANK LID COMP. | 1 | More Info |
| E95 | KM0408001-E95 | STAND | 1 | More Info |
| E96 | KM0408001-E96 | SCREW M5*30 | 2 | More Info |
| E97 | KM0408001-E97 | CHOKE SWITCH | 1 | More Info |
| E98 | KM0408001-E98 | STARTER PROTECTOR | 1 | More Info |
| No. | KNK Art No. | Description | Qty | Button |
|---|
| M1 | KM0408001-M1 | CLUTCH DRUM | 1 | More Info |
| M2 | KM0408001-M2 | CONNECTIVE PLATE | 1 | More Info |
| M3 | KM0408001-M3 | SCREW M6*20 | 4 | More Info |
| M4 | KM0408001-M4 | SCREW M6*25 | 4 | More Info |
| M5 | KM0408001-M5 | CIRCLIP | 1 | More Info |
| M6 | KM0408001-M6 | BEARING R12 | 3 | More Info |
| M7 | KM0408001-M7 | GEAR CASE COVER | 1 | More Info |
| M8 | KM0408001-M8 | GEAR AXLE A | 1 | More Info |
| M9 | KM0408001-M9 | BEARING R10 | 2 | More Info |
| M10 | KM0408001-M10 | PIN A | 2 | More Info |
| M11 | KM0408001-M11 | CIRCLIP | 3 | More Info |
| M12 | KM0408001-M12 | GEAR A | 1 | More Info |
| M13 | KM0408001-M13 | GEAR AXLE B | 1 | More Info |
| M14 | KM0408001-M14 | GASKET | 1 | More Info |
| M15 | KM0408001-M15 | GEAR B | 1 | More Info |
| M16 | KM0408001-M16 | PIN B | 2 | More Info |
| M17 | KM0408001-M17 | GEAR BOX | 1 | More Info |
| M18 | KM0408001-M18 | SCREW M6*30 | 2 | More Info |
| M19 | KM0408001-M19 | SCREW M6*50 | 4 | More Info |
| M20 | KM0408001-M20 | OUTLET AXLE | 1 | More Info |
| M21 | KM0408001-M21 | DRILL | 1 | More Info |
| M22 | KM0408001-M22 | COTTER | 1 | More Info |
| M23 | KM0408001-M23 | PIN | 1 | More Info |
| M24 | KM0408001-M24 | CABLE | 1 | More Info |
| M25 | KM0408001-M25 | FRAME | 1 | More Info |
| M26 | KM0408001-M26 | THROTTLE CONTROL | 1 | More Info |
| M27 | KM0408001-M27 | STOP SWITCH | 1 | More Info |
| M28 | KM0408001-M28 | RUBBER CUSHION | 2 | More Info |
| M29 | KM0408001-M29 | SQUARE WASHER | 2 | More Info |
| M30 | KM0408001-M30 | SCREW | 1 | More Info |
| M31 | KM0408001-M31 | FRAME COMP. | 1 | More Info |
| M32 | KM0408001-M32 | GEAR CASE COMP. | 1 | More Info |
| No. | KNK Art No. | Description | Qty | Button |
|---|
| 1 | KM0408001-M1 | 离合器盘 clutch disc | * | More Info |
| 2 | R12轴承 R12 bearing | * | More Info | |
| 3 | 轴 input shaft | * | More Info | |
| 4 | 上箱体 gear box | * | More Info | |
| 5 | 箱体垫片 gasket | * | More Info | |
| 6 | 6905轴承 6905 bearing | * | More Info | |
| 7,24 | 组合齿轮 gear set | * | More Info | |
| 8,25 | R10轴承 R10 bearing | * | More Info | |
| 9 | 下箱体 gear box | * | More Info | |
| 11 | 减震垫片 shock pad | * | More Info | |
| 13 | 开关总成 switch assembly | * | More Info | |
| 14,16 | 右左手把 handle | * | More Info | |
| 15 | 底板 baseboard | * | More Info | |
| 17 | 输出轴 output shaft | * | More Info | |
| 18,21 | 6004轴承 6004 bearing | * | More Info | |
| 19 | 油封 oil seal | * | More Info | |
| 20 | `注油嘴 zerk | * | More Info | |
| 22 | 圆柱销 straight pin | * | More Info | |
| 27 | 销 pin | * | More Info |
| No. | KNK Art No. | Description | Qty | Button |
|---|
| 2 | KM0408001E-2 | cylinder | * | More Info |
| 3 | KM0408001E-3 | gasket | * | More Info |
| 4 | KM0408001E-4 | piston ring | * | More Info |
| 5 | KM0408001E-5 | piston | * | More Info |
| 6 | KM0408001E-6 | ring | * | More Info |
| 7 | KM0408001E-7 | piston pin | * | More Info |
| 8 | KM0408001E-8 | needle bearing | * | More Info |
| 10 | KM0408001E-10 | crankshaft | * | More Info |
| 11 | KM0408001E-11 | 6202 bearing | * | More Info |
| 12 | KM0408001E-12 | gasket | * | More Info |
| 13、59 | KM0408001E-13、59 | crank case | * | More Info |
| 14、56 | KM0408001E-14、56 | oil seal | * | More Info |
| 15 | KM0408001E-15 | start reel | * | More Info |
| 17 | KM0408001E-17 | gasket | * | More Info |
| 19 | KM0408001E-19 | start assy | * | More Info |
| 21 | KM0408001E-21 | outside cover | * | More Info |
| 22 | KM0408001E-22 | inside cover | * | More Info |
| 25 | KM0408001E-25 | filter net | * | More Info |
| 27 | KM0408001E-27 | carburetor | * | More Info |
| 28 | KM0408001E-28 | gasket | * | More Info |
| 30 | KM0408001E-30 | admitting pipe | * | More Info |
| 33 | KM0408001E-33 | spark plug | * | More Info |
| 35 | KM0408001E-35 | cylinder clothing | * | More Info |
| 36 | KM0408001E-36 | cylinder cover | * | More Info |
| 38 | KM0408001E-38 | gasket | * | More Info |
| 41 | KM0408001E-41 | muffler | * | More Info |
| 42 | KM0408001E-42 | muffler cover | * | More Info |
| 45 | KM0408001E-45 | ignition | * | More Info |
| 50 | KM0408001E-50 | clutch | * | More Info |
| 54 | KM0408001E-54 | fly wheel | * | More Info |
| 61 | KM0408001E-61 | fuel tank | * | More Info |
