knkpower [14157] KNK

KM0409223 25.4CC HEDGE TRIMMER Engine:25.4cc Power:0.75kw 7500r min Blade length:600mm Teeth distance:28mm Packing:110x26.5x30cm 1PC N.W. G.W.:7.0 8.5kgs 20'FCL:350PCS

inquiry wholesale price

KNK Art No.: KM0409223

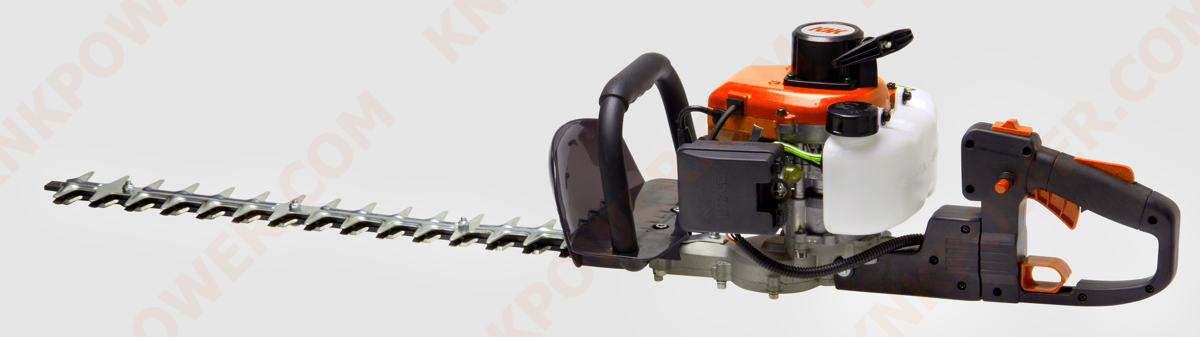

25.4CC HEDGE TRIMMER
Engine: 25.4cc
Power: 0.75kw/7500r/min
Blade length: 600mm
Teeth distance: 28mm
Packing: 110x26.5x30cm/1PC
N.W./G.W.: 7.0/8.5kgs
20'FCL: 350PCS
Product Net Weight
7000g ≈ 7 kgs ≈ 246.91oz ≈ 15.43lbs
Related Brands (Replacement Parts)
KNK
Related Categories
↘︎SPARE PARTS LIST
No. KNK Art No. Description Qty Button
E1 KM0409223-E1 AIR CLEANER COVER 1 More Info
E10 KM0409223-E10 CARBURETOR GASKET 1 More Info
E100 KM0409223-E100 SCREW M5*20 3 More Info
E101 KM0409223-E101 SCREW M4*10 1 More Info
E102 KM0409223-E102 GUIDE PLATE 1 More Info
E103 KM0409223-E103 KEY 1 More Info
E11 KM0409223-E11 SCREW M5*25 2 More Info
E12 KM0409223-E12 MAINFOLD 1 More Info
E13 KM0409223-E13 MAINFOLD GASKET 1 More Info
E14 KM0409223-E14 CYLINDER 1 More Info
E15 KM0409223-E15 CYLINDER GASKET 1 More Info
E16 KM0409223-E16 PISTON RING 2 More Info
E17 KM0409223-E17 CIRCLIP 2 More Info
E18 KM0409223-E18 NEEDLE BEARING 1 More Info
E19 KM0409223-E19 PIN 1 More Info
E2 KM0409223-E2 AIR CLEANER FILTER 2 More Info
E20 KM0409223-E20 PISTON 1 More Info
E21 KM0409223-E21 CRANKSHAFT 1 More Info
E22 KM0409223-E22 BEARING 2 More Info
E23 KM0409223-E23 CIRCLIP 1 More Info
E24 KM0409223-E24 OILSEAL 1 More Info
E25 KM0409223-E25 PIN 2 More Info
E26 KM0409223-E26 CRANKSHAFT CASE A 1 More Info
E27 KM0409223-E27 EXPANDER CASE 1 More Info
E28 KM0409223-E28 SCREW M5*20 4 More Info
E29 KM0409223-E29 EXPANDER BRACKET 1 More Info
E3 KM0409223-E3 NET A 1 More Info
E30 KM0409223-E30 WASHER 1 More Info
E31 KM0409223-E31 NUT M8 1 More Info
E32 KM0409223-E32 WASHER 2 More Info
E33 KM0409223-E33 EXPANDER ASSY. 1 More Info
E34 KM0409223-E34 EXPANDER 2 More Info
E35 KM0409223-E35 SPRING 1 More Info
E36 KM0409223-E36 WASHER 2 More Info
E37 KM0409223-E37 SCREW 2 More Info
E38 KM0409223-E38 CRANK SHAFT CASE GASKET 1 More Info
E39 KM0409223-E39 OIL SEAL 1 More Info
E4 KM0409223-E4 NET B 1 More Info
E40 KM0409223-E40 CRANK SHAFT CASE B 1 More Info
E41 KM0409223-E41 PIN 1 More Info
E42 KM0409223-E42 SCREW M5*25 4 More Info
E43 KM0409223-E43 FLYWHEEL 1 More Info
E44 KM0409223-E44 WASHER 1 More Info
E45 KM0409223-E45 NUT M8 1 More Info
E46 KM0409223-E46 CIRCLIP 2 More Info
E47 KM0409223-E47 START REEL 1 More Info
E48 KM0409223-E48 SPRING 2 More Info
E49 KM0409223-E49 CLAW 2 More Info
E5 KM0409223-E5 CHOKE 1 More Info
E50 KM0409223-E50 SCREW M6*12 2 More Info
E51 KM0409223-E51 STARTER PULLEY ASSY. 1 More Info
E52 KM0409223-E52 STARTER ASSY. 1 More Info
E53 KM0409223-E53 STARTER BODY 1 More Info
E54 KM0409223-E54 ROPE 1 More Info
E55 KM0409223-E55 HANDLE 1 More Info
E56 KM0409223-E56 SPRING 1 More Info
E57 KM0409223-E57 ROPE REEL 1 More Info
E58 KM0409223-E58 SPRING 2 More Info
E59 KM0409223-E59 CLAW 2 More Info
E6 KM0409223-E6 SCREW M5*65 2 More Info
E60 KM0409223-E60 SPRING REEL ASSY. 1 More Info
E61 KM0409223-E61 RATCHET 1 More Info
E62 KM0409223-E62 PIN 1 More Info
E63 KM0409223-E63 WASHER 1 More Info
E64 KM0409223-E64 SCREW 1 More Info
E65 KM0409223-E65 MUFFER GASKET 1 More Info
E66 KM0409223-E66 MUFFER 1 More Info
E67 KM0409223-E67 SCREW M5*55 2 More Info
E68 KM0409223-E68 SCREW M5*25 2 More Info
E69 KM0409223-E69 WASHER 2 More Info
E7 KM0409223-E7 AIR CLEANER INSIDE COVER 1 More Info
E70 KM0409223-E70 CAP 1 More Info
E71 KM0409223-E71 SPRING 1 More Info
E72 KM0409223-E72 PLUG CAP 1 More Info
E73 KM0409223-E73 PLUG 1 More Info
E74 KM0409223-E74 PLUG 1 More Info
E75 KM0409223-E75 CLAMP 1 More Info
E76 KM0409223-E76 WIRE 1 More Info
E77 KM0409223-E77 IGNITION 1 More Info
E78 KM0409223-E78 IGNITION ASSY. 1 More Info
E79 KM0409223-E79 SPARK PLUG 1 More Info
E8 KM0409223-E8 GASKET 1 More Info
E80 KM0409223-E80 SCREW M4*20 2 More Info
E81 KM0409223-E81 GUIDE COVER 1 More Info
E82 KM0409223-E82 FLYWHEEL COVER 1 More Info
E83 KM0409223-E83 SCREW M4*15 4 More Info
E84 KM0409223-E84 SCREW M5*20 4 More Info
E85 KM0409223-E85 SCREW M4*15 1 More Info
E86 KM0409223-E86 FUEL TANK CAP 1 More Info
E87 KM0409223-E87 WASHER 1 More Info
E88 KM0409223-E88 AIR VALVE 1 More Info
E89 KM0409223-E89 CAP A 1 More Info
E9 KM0409223-E9 CARBURETOR 1 More Info
E90 KM0409223-E90 CAP B 1 More Info
E91 KM0409223-E91 CHAIN 1 More Info
E92 KM0409223-E92 FUEL TANK CAP ASSY. 1 More Info
E93 KM0409223-E93 FUEL PIPE A 1 More Info
E94 KM0409223-E94 PLUG 1 More Info
E95 KM0409223-E95 FUEL PIPE B 1 More Info
E96 KM0409223-E96 FUEL FILTER 1 More Info
E97 KM0409223-E97 FUEL FILTER ASSY. 1 More Info
E98 KM0409223-E98 FUEL TANK 1 More Info
E99 KM0409223-E99 WAHSER 1 More Info
No. KNK Art No. Description Qty Button
M1 KM0409223-M1 HANDLE ASSY. 1 More Info
M10 KM0409223-M10 BELLOWS 1 More Info
M11 KM0409223-M11 CABLE 1 More Info
M12 KM0409223-M12 SWITCH ASSY. 1 More Info
M13 KM0409223-M13 HANDGRIP 1 More Info
M14 KM0409223-M14 SPRING 1 More Info
M15 KM0409223-M15 SELF TAPPING SCREW ST3*8 1 More Info
M16 KM0409223-M16 TRIGGER 1 More Info
M17 KM0409223-M17 RACHET 1 More Info
M18 KM0409223-M18 SPRING 1 More Info
M19 KM0409223-M19 HANDLE BODY C 1 More Info
M2 KM0409223-M2 SELF TAPPING SCREW ST4*15 7 More Info
M20 KM0409223-M20 SPRING 1 More Info
M21 KM0409223-M21 PULL-TAB 1 More Info
M22 KM0409223-M22 HANDLE BODY D 1 More Info
M23 KM0409223-M23 NUT M6 1 More Info
M24 KM0409223-M24 CLUTCH DRUM 1 More Info
M25 KM0409223-M25 SCREW M6*10 1 More Info
M3 KM0409223-M3 CAP 1 More Info
M4 KM0409223-M4 SPRING 1 More Info
M5 KM0409223-M5 HANDLE BODY A 1 More Info
M6 KM0409223-M6 PIN 1 More Info
M7 KM0409223-M7 SCREW M4*35 3 More Info
M8 KM0409223-M8 SCREW M6*55 1 More Info
M9 KM0409223-M9 HANLE BODY B 1 More Info
M26 KM0409223-M26 PLATE 1 More Info
M27 KM0409223-M27 NUT M5 2 More Info
M28 KM0409223-M28 GEAR CASE 1 More Info
M29 KM0409223-M29 BEARING 6001RZ 1 More Info
M30 KM0409223-M30 BEARING 608RS 1 More Info
M31 KM0409223-M31 SCREW M5*17 2 More Info
M32 KM0409223-M32 PRESSING PLATE 1 More Info
M33 KM0409223-M33 GEAR 1 More Info
M34 KM0409223-M34 GEAR AXLE 1 More Info
M35 KM0409223-M35 SHAFT 2 More Info
M36 KM0409223-M36 SCREW M3*5 2 More Info
M37 KM0409223-M37 PLATE 1 More Info
M38 KM0409223-M38 BEARING 608RS 2 More Info
M39 KM0409223-M39 GEAR CASE COVER 1 More Info
M40 KM0409223-M40 SCREW M5*15 7 More Info
M41 KM0409223-M41 FELT 1 More Info
M42 KM0409223-M42 WASHER 4 More Info
M43 KM0409223-M43 SCREW M6*20 4 More Info
M44 KM0409223-M44 BLADE 2 More Info
M45 KM0409223-M45 BLADE GUARD 2 More Info
M46 KM0409223-M46 PLATE A 1 More Info
M47 KM0409223-M47 PLATE B 1 More Info
M48 KM0409223-M48 NUT M6 4 More Info
M49 KM0409223-M49 SELF TAPPING SCREW 2 More Info
M50 KM0409223-M50 BAFFLE 1 More Info
M51 KM0409223-M51 SCREW 2 More Info
M52 KM0409223-M52 HANDLE 1 More Info
