KNK Art No.: KM0404103

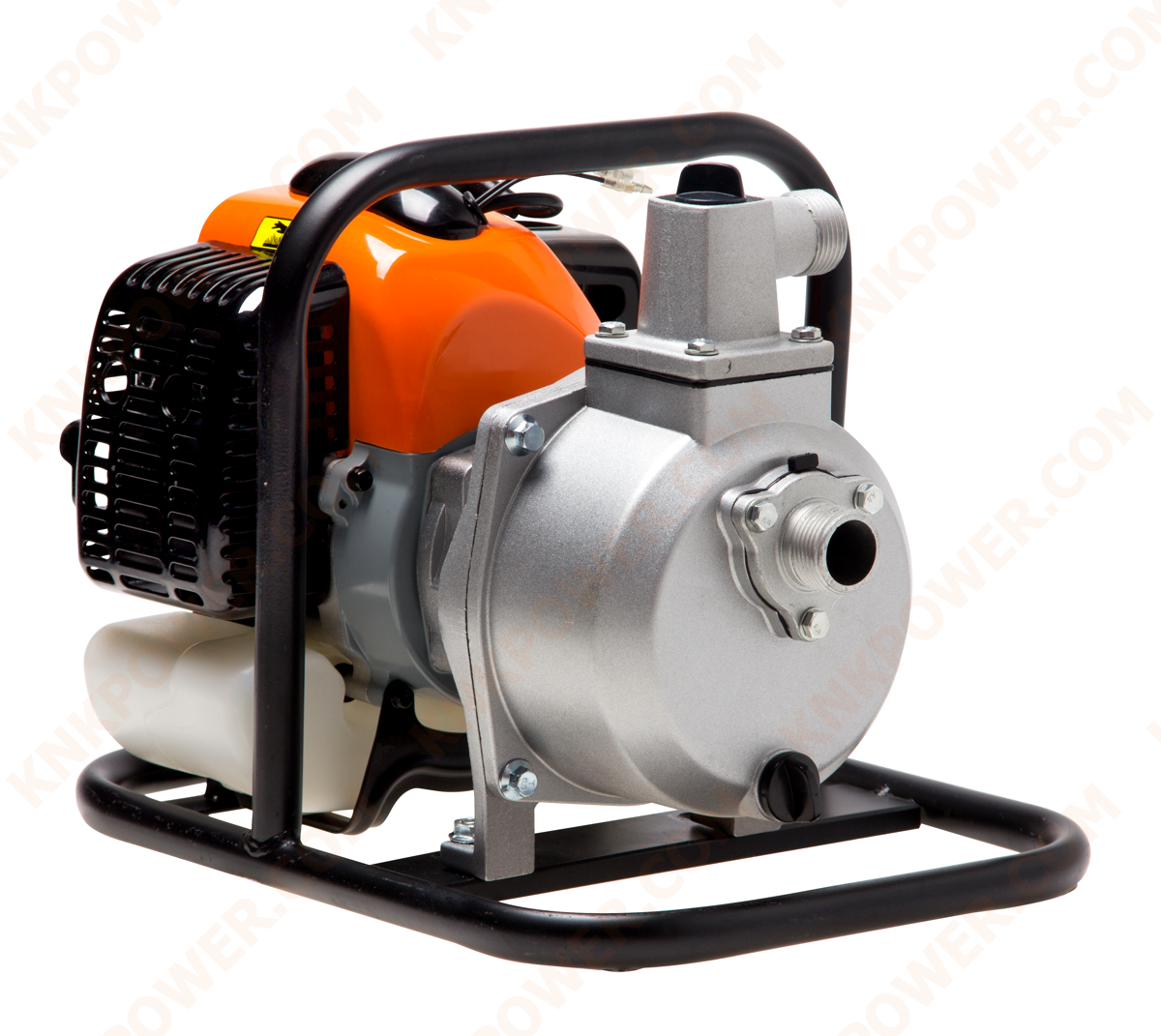

1.8HP WATER PUMP
Engine: KM1E40F-5(1.8HP)
Outlet size: 25mm(1")
Inlet size: 25mm(1")
Q.max.capacity: 7m3/h
Lift h.max: 22m
Suction: 7m
N.W./G.W.: 9.0/9.5kgs
Packing: 33x31x34.5cm
20'FCL: 675PCS
Outlet size: 25mm(1")
Inlet size: 25mm(1")
Q.max.capacity: 7m3/h
Lift h.max: 22m
Suction: 7m
N.W./G.W.: 9.0/9.5kgs
Packing: 33x31x34.5cm
20'FCL: 675PCS
Product Net Weight
9000g ≈ 9 kgs ≈ 317.46oz ≈ 19.84lbs
Related Brands (Replacement Parts)
Related Categories
↘︎SPARE PARTS LIST
ENGINE
| No. | KNK Art No. | Description | Qty | Button |
|---|
| E1 | KM0404103-E1 | SCREW | 1 | More Info |
| E10 | KM0404103-E10 | SPRING | 1 | More Info |
| E11 | KM0404103-E11 | STARTER POLE | 2 | More Info |
| E12 | KM0404103-E12 | STARTER | 1 | More Info |
| E13 | KM0404103-E13 | STARTER GASKET | 1 | More Info |
| E14 | KM0404103-E14 | STARTER REEL | 1 | More Info |
| E15 | KM0404103-E15 | OIL SEAL | 1 | More Info |
| E16 | KM0404103-E16 | CRANK CASE | 1 | More Info |
| E17 | KM0404103-E17 | CRANK CASE GASKET | 1 | More Info |
| E18 | KM0404103-E18 | BEARING 6202/P5 | 2 | More Info |
| E19 | KM0404103-E19 | CRANK SHAFT | 1 | More Info |
| E2 | KM0404103-E2 | RATCHET | 1 | More Info |
| E20 | KM0404103-E20 | KEY 3*5*13 | 1 | More Info |
| E21 | KM0404103-E21 | PIN B5*10 | 2 | More Info |
| E22 | KM0404103-E22 | CRANK CASE | 1 | More Info |
| E23 | KM0404103-E23 | OIL SEAL | 1 | More Info |
| E24 | KM0404103-E24 | PIN B4*10 | 2 | More Info |
| E25 | KM0404103-E25 | SCREW M5*30 | 4 | More Info |
| E26 | KM0404103-E26 | FLYWHEEL | 1 | More Info |
| E27 | KM0404103-E27 | FLAT WASHER | 1 | More Info |
| E28 | KM0404103-E28 | SPRING WASHER | 1 | More Info |
| E29 | KM0404103-E29 | NUT M8 | 1 | More Info |
| E3 | KM0404103-E3 | STARTER ROPE REEL | 1 | More Info |
| E30 | KM0404103-E30 | IGNITION | 1 | More Info |
| E31 | KM0404103-E31 | WIRE | 1 | More Info |
| E32 | KM0404103-E32 | SCREW M5*20 | 2 | More Info |
| E33 | KM0404103-E33 | FLAT WASHER | 2 | More Info |
| E34 | KM0404103-E34 | SPRING | 1 | More Info |
| E35 | KM0404103-E35 | EXPANDER | 2 | More Info |
| E36 | KM0404103-E36 | WAVE WASHER | 2 | More Info |
| E37 | KM0404103-E37 | SCREW PIN | 1 | More Info |
| E38 | KM0404103-E38 | FAN COVER | 1 | More Info |
| E39 | KM0404103-E39 | * | 0 | More Info |
| E4 | KM0404103-E4 | STARTER ROPE | 1 | More Info |
| E40 | KM0404103-E40 | SCREW M5*25 | 2 | More Info |
| E41 | KM0404103-E41 | BEARING | 1 | More Info |
| E42 | KM0404103-E42 | RING | 2 | More Info |
| E43 | KM0404103-E43 | PISTON PIN | 1 | More Info |
| E44 | KM0404103-E44 | PISTON | 1 | More Info |
| E45 | KM0404103-E45 | PISTON RING | 2 | More Info |
| E46 | KM0404103-E46 | CYLINDER GASKET | 1 | More Info |
| E47 | KM0404103-E47 | CYLINDER | 1 | More Info |
| E48 | KM0404103-E48 | SCREW M5*18 | 4 | More Info |
| E49 | KM0404103-E49 | GUIDE COVER | 1 | More Info |
| E5 | KM0404103-E5 | RECOIL SPRING | 1 | More Info |
| E50 | KM0404103-E50 | SPARK PLUG | 1 | More Info |
| E51 | KM0404103-E51 | SPRING | 1 | More Info |
| E52 | KM0404103-E52 | PLUG CAP | 1 | More Info |
| E53 | KM0404103-E53 | CAP | 1 | More Info |
| E54 | KM0404103-E54 | PLUG | 1 | More Info |
| E55 | KM0404103-E55 | COVER | 1 | More Info |
| E56 | KM0404103-E56 | MUFFLER GASKET | 1 | More Info |
| E57 | KM0404103-E57 | MUFFLER | 1 | More Info |
| E58 | KM0404103-E58 | SCREW M5*12 | 4 | More Info |
| E59 | KM0404103-E59 | SCREW M6*60 | 2 | More Info |
| E6 | KM0404103-E6 | STARTER BODY | 1 | More Info |
| E60 | KM0404103-E60 | * | 0 | More Info |
| E61 | KM0404103-E61 | MUFFLER COVER | 1 | More Info |
| E62 | KM0404103-E62 | ADMITTING PIPE GASKET | 1 | More Info |
| E63 | KM0404103-E63 | ADMITTING PIPE | 1 | More Info |
| E64 | KM0404103-E64 | CARBURETOR GASKET | 1 | More Info |
| E65 | KM0404103-E65 | CARBURETOR | 1 | More Info |
| E66 | KM0404103-E66 | CHOKER HANDLE | 1 | More Info |
| E67 | KM0404103-E67 | * | 0 | More Info |
| E68 | KM0404103-E68 | * | 0 | More Info |
| E69 | KM0404103-E69 | CLEANER INSIDE COVER | 1 | More Info |
| E7 | KM0404103-E7 | SCREW M5*20 | 5 | More Info |
| E70 | KM0404103-E70 | SCREW M5*50 | 2 | More Info |
| E71 | KM0404103-E71 | CHOKER | 1 | More Info |
| E72 | KM0404103-E72 | SCREW ST4.2*12 | 1 | More Info |
| E73 | KM0404103-E73 | AIR FILTER | 1 | More Info |
| E74 | KM0404103-E74 | CLEANER OUTSIDE COVER | 1 | More Info |
| E75 | KM0404103-E75 | KNOB | 1 | More Info |
| E76 | KM0404103-E76 | * | 0 | More Info |
| E77 | KM0404103-E77 | RUBBER CUSHION | 1 | More Info |
| E78 | KM0404103-E78 | FUEL FILTER | 1 | More Info |
| E79 | KM0404103-E79 | FUEL PIPE (LONG) | 1 | More Info |
| E8 | KM0404103-E8 | STARTER HANDLE | 1 | More Info |
| E80 | KM0404103-E80 | PLUG | 1 | More Info |
| E81 | KM0404103-E81 | FUEL PIPE (SHORT) | 1 | More Info |
| E82 | KM0404103-E82 | SCREW M5*16 | 2 | More Info |
| E83 | KM0404103-E83 | FUEL TANK | 1 | More Info |
| E84 | KM0404103-E84 | CHAIN | 1 | More Info |
| E85 | KM0404103-E85 | END COVER | 1 | More Info |
| E86 | KM0404103-E86 | INSIDE COVER | 1 | More Info |
| E87 | KM0404103-E87 | INLET | 1 | More Info |
| E88 | KM0404103-E88 | O RING | 1 | More Info |
| E89 | KM0404103-E89 | FUEL TANK LID | 1 | More Info |
| E9 | KM0404103-E9 | RING | 1 | More Info |
| E90 | KM0404103-E90 | FUEL TANK LID ASSY. | 1 | More Info |
| E91 | KM0404103-E91 | RUBBER CUSHION | 2 | More Info |
| E92 | KM0404103-E92 | STAND | 1 | More Info |
| E93 | KM0404103-E93 | SCREW M5*30 | 2 | More Info |
PUMP
| No. | KNK Art No. | Description | Qty | Button |
|---|
| P1 | KM0404103-P1 | PUMP COVER | 1 | More Info |
| P10 | KM0404103-P10 | OUTLET SEALED WASHER | 1 | More Info |
| P11 | KM0404103-P11 | NUT M8 | 2 | More Info |
| P12 | KM0404103-P12 | SCREW M6*18 | 4 | More Info |
| P13 | KM0404103-P13 | O RING | 2 | More Info |
| P14 | KM0404103-P14 | WHORL PLUG | 2 | More Info |
| P15 | KM0404103-P15 | SANNER | 2 | More Info |
| P16 | KM0404103-P16 | PIPE | 2 | More Info |
| P17 | KM0404103-P17 | SEALED WASHER | 2 | More Info |
| P18 | KM0404103-P18 | OUTLET FLANGE | 1 | More Info |
| P19 | KM0404103-P19 | INLET FLANGE | 1 | More Info |
| P2 | KM0404103-P2 | O RING | 1 | More Info |
| P20 | KM0404103-P20 | CHECK VALVE | 1 | More Info |
| P21 | KM0404103-P21 | SCREW M6*18 | 3 | More Info |
| P22 | KM0404103-P22 | SCREW M8*20 | 2 | More Info |
| P23 | KM0404103-P23 | SCREW M8*30 | 2 | More Info |
| P24 | KM0404103-P24 | HANDLE | 1 | More Info |
| P25 | KM0404103-P25 | NUT M5 | 1 | More Info |
| P26 | KM0404103-P26 | THROTTLE SWITCH | 1 | More Info |
| P27 | KM0404103-P27 | STOP SWITCH | 1 | More Info |
| P28 | KM0404103-P28 | SCREW M6*18 | 4 | More Info |
| P29 | KM0404103-P29 | CONNECTOR A | 1 | More Info |
| P3 | KM0404103-P3 | SEALED WASHER | 1 | More Info |
| P30 | KM0404103-P30 | SCREW M8*16 | 2 | More Info |
| P31 | KM0404103-P31 | WASHER | 2 | More Info |
| P32 | KM0404103-P32 | BEARING | 1 | More Info |
| P33 | KM0404103-P33 | CONNECTOR B | 1 | More Info |
| P34 | KM0404103-P34 | PEDESTAL | 1 | More Info |
| P35 | KM0404103-P35 | SCREW M8*20 | 2 | More Info |
| P36 | KM0404103-P36 | NUT M8 | 2 | More Info |
| P37 | KM0404103-P37 | NUT M8 | 4 | More Info |
| P38 | KM0404103-P38 | CUSHION | 4 | More Info |
| P39 | KM0404103-P39 | WATER FILTER | 1 | More Info |
| P4 | KM0404103-P4 | SCREW M6*45 | 4 | More Info |
| P40 | KM0404103-P40 | WATER FILTER CAP | 1 | More Info |
| P41 | KM0404103-P41 | CLAMP | 3 | More Info |
| P5 | KM0404103-P5 | MECHANICAL SEAL | 1 | More Info |
| P6 | KM0404103-P6 | IMPELLER | 1 | More Info |
| P7 | KM0404103-P7 | DIFFUSER | 1 | More Info |
| P8 | KM0404103-P8 | O RING | 1 | More Info |
| P9 | KM0404103-P9 | PUMP BODY | 1 | More Info |
