KNK Art No.: KM0408435K

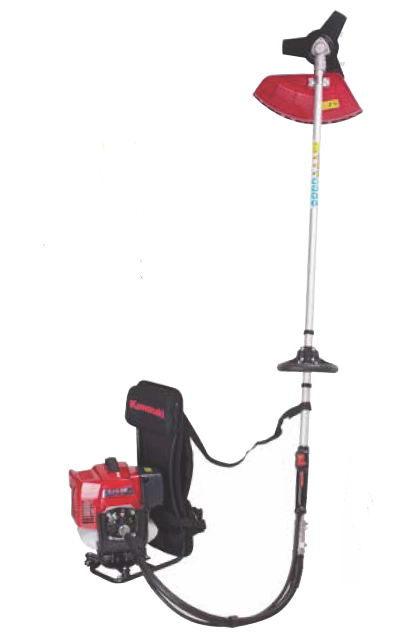

45.4CC BACKPACK BRUSH CUTTER
Engine: Kawasaki TJ45E 45.4cc
Power: 1.4kw/1.88HP
Shaft Ф: 26mm
N.W./G.W: 13/14kgs
Packing: 37x32x60cm/1Engine
167x12.5x10.5cm/1Machinery
20'FCL: 300PCS
Power: 1.4kw/1.88HP
Shaft Ф: 26mm
N.W./G.W: 13/14kgs
Packing: 37x32x60cm/1Engine
167x12.5x10.5cm/1Machinery
20'FCL: 300PCS
Product Net Weight
13000g ≈ 13 kgs ≈ 458.55oz ≈ 28.66lbs
Related Manuals/Videos/Tables
Comparison of High Backpack Brushcutter With Kawasaki Engine
KNKPOWER BRUSHCUTTER MACHINES REVIEW
KNKPOWER BACKPACK BRUSHCUTTER MACHINES REVIEW
KNK KAWASAKI ENGINE BRUSHCUTTER MACHINES REVIEW
Fit For Model (Replacement Parts)
Related Brands (Replacement Parts)
Related Categories
↘︎SPARE PARTS LIST
V2
| No. | KNK Art No. | Description | Qty | Button |
|---|
| M1 | KM0408435K-M1 | KNAPSACK | 1 | More Info |
| M2 | KM0408435K-M2 | BRACKET | 1 | More Info |
| M3 | KM0408435K-M3 | CUSHION RUBBER | 3 | More Info |
| M4 | KM0408435K-M4 | NUT M6 | 7 | More Info |
| M5 | KM0408435K-M5 | NUT M10 | 1 | More Info |
| M6 | KM0408435K-M6 | SCREW M6*30 | 1 | More Info |
| M7 | KM0408435K-M7 | TRAY | 1 | More Info |
| M8 | KM0408435K-M8 | SCREW M5*15 | 3 | More Info |
| M9 | KM0408435K-M9 | PLATE | 1 | More Info |
| M10 | KM0408435K-M10 | NUT M5 | 3 | More Info |
| M11 | KM0408435K-M11 | SUPPORTOR | 1 | More Info |
| M12 | KM0408435K-M12 | CLUTCH COMP. | 1 | More Info |
| M13 | KM0408435K-M13 | CLUTCH DRUM | 1 | More Info |
| M14 | KM0408435K-M14 | CIRCLIP | 1 | More Info |
| M15 | KM0408435K-M15 | BEARING(6202) | 1 | More Info |
| M16 | KM0408435K-M16 | CLUTCH BODY | 1 | More Info |
| M17 | KM0408435K-M17 | CIRCLIP | 1 | More Info |
| M18 | KM0408435K-M18 | PIN | 1 | More Info |
| M19 | KM0408435K-M19 | SPRING | 1 | More Info |
| M20 | KM0408435K-M20 | CIRCLIP | 1 | More Info |
| M21 | KM0408435K-M21 | FLXIBLE SHAFT 890MM | 1 | More Info |
| M22 | KM0408435K-M22 | FLXIBLE PIPE 890MM | 1 | More Info |
| M23 | KM0408435K-M23 | SCREW M6*35 | 1 | More Info |
| M24 | KM0408435K-M24 | SCREW M6*10 | 1 | More Info |
| M25 | KM0408435K-M25 | SCREW M6*25 | 1 | More Info |
V1
| No. | KNK Art No. | Description | Qty | Button |
|---|
| M1 | KM0408435K-M1 | KNAPSACK | 1 | More Info |
| M10 | KM0408435K-M10 | NUT M5 | 3 | More Info |
| M11 | KM0408435K-M11 | SUPPORTOR | 1 | More Info |
| M12 | KM0408435K-M12 | CLUTCH COMP. | 1 | More Info |
| M13 | KM0408435K-M13 | CLUTCH DRUM | 1 | More Info |
| M14 | KM0408435K-M14 | CIRCLIP | 1 | More Info |
| M15 | KM0408435K-M15 | BEARING(6202) | 1 | More Info |
| M16 | KM0408435K-M16 | CLUTCH BODY | 1 | More Info |
| M17 | KM0408435K-M17 | CIRCLIP | 1 | More Info |
| M18 | KM0408435K-M18 | PIN | 1 | More Info |
| M19 | KM0408435K-M19 | SPRING | 1 | More Info |
| M2 | KM0408435K-M2 | BRACKET | 1 | More Info |
| M20 | KM0408435K-M20 | CIRCLIP | 1 | More Info |
| M21 | KM0408435K-M21 | FLXIBLE SHAFT 890MM | 1 | More Info |
| M22 | KM0408435K-M22 | FLXIBLE PIPE 890MM | 1 | More Info |
| M23 | KM0408435K-M23 | SCREW M6*35 | 1 | More Info |
| M24 | KM0408435K-M24 | SCREW M6*10 | 1 | More Info |
| M25 | KM0408435K-M25 | SCREW M6*25 | 1 | More Info |
| M26 | KM0408435K-M26 | PIPE CONNECTOR | 1 | More Info |
| M27 | KM0408435K-M27 | SHAFT CONNECTOR | 1 | More Info |
| M28 | KM0408435K-M28 | BEARING(6002) | 1 | More Info |
| M29 | KM0408435K-M29 | CIRCLIP | 1 | More Info |
| M3 | KM0408435K-M3 | CUSHION RUBBER | 3 | More Info |
| M30 | KM0408435K-M30 | PIPE 1500*26MM | 1 | More Info |
| M31 | KM0408435K-M31 | SHAFT 1533*8MM M8*9T | 1 | More Info |
| M32 | KM0408435K-M32 | OIL BEARING | 6 | More Info |
| M33 | KM0408435K-M33 | HANDLE UPPER | 1 | More Info |
| M34 | KM0408435K-M34 | CUSHION RUBBER | 1 | More Info |
| M35 | KM0408435K-M35 | HANDLE UNDER | 1 | More Info |
| M36 | KM0408435K-M36 | SCREW M5*30 | 4 | More Info |
| M37 | KM0408435K-M37 | NUT M5 | 4 | More Info |
| M38 | KM0408435K-M38 | HANDLE ASSY. | 1 | More Info |
| M39 | KM0408435K-M39 | THROTTLE HANDLE | 1 | More Info |
| M4 | KM0408435K-M4 | NUT M6 | 7 | More Info |
| M40 | KM0408435K-M40 | NUT M5 | 2 | More Info |
| M41 | KM0408435K-M41 | THROTTLE HANDLE UNDER | 1 | More Info |
| M42 | KM0408435K-M42 | SPRING | 1 | More Info |
| M43 | KM0408435K-M43 | TRIGGER | 1 | More Info |
| M44 | KM0408435K-M44 | CABLE COMP. | 1 | More Info |
| M45 | KM0408435K-M45 | SWITCH | 1 | More Info |
| M46 | KM0408435K-M46 | HANDLE GRIP | 1 | More Info |
| M47 | KM0408435K-M47 | THROTTLE HANDLE UPPER | 1 | More Info |
| M48 | KM0408435K-M48 | SELF TAPPING SCREW 4*15 | 4 | More Info |
| M49 | KM0408435K-M49 | SCREW M5*20 | 2 | More Info |
| M5 | KM0408435K-M5 | NUT M10 | 1 | More Info |
| M50 | KM0408435K-M50 | PLATE | 1 | More Info |
| M51 | KM0408435K-M51 | RIVET | 1 | More Info |
| M52 | KM0408435K-M52 | SCREW M6*30 | 2 | More Info |
| M53 | KM0408435K-M53 | SAFTY GUAID | 1 | More Info |
| M54 | KM0408435K-M54 | KNIFE RACK | 1 | More Info |
| M55 | KM0408435K-M55 | KNIFE | 1 | More Info |
| M56 | KM0408435K-M56 | SELF TAPPING SCREW 4*10 | 3 | More Info |
| M57 | KM0408435K-M57 | SAFTY GUAID ASSY. | 1 | More Info |
| M58 | KM0408435K-M58 | GEAR CASE ASSY. | 1 | More Info |
| M59 | KM0408435K-M59 | CIRCLIP | 1 | More Info |
| M6 | KM0408435K-M6 | SCREW M6*30 | 1 | More Info |
| M60 | KM0408435K-M60 | CIRCLIP | 1 | More Info |
| M61 | KM0408435K-M61 | BEARING(6000) | 2 | More Info |
| M62 | KM0408435K-M62 | PINION | 1 | More Info |
| M63 | KM0408435K-M63 | SCREW M6*35 | 1 | More Info |
| M64 | KM0408435K-M64 | SCREW M5*10 | 1 | More Info |
| M65 | KM0408435K-M65 | GEAR CASE BODY | 1 | More Info |
| M66 | KM0408435K-M66 | SCREW M6*10 | 1 | More Info |
| M67 | KM0408435K-M67 | PLATE | 1 | More Info |
| M68 | KM0408435K-M68 | SCREW M5*10 | 3 | More Info |
| M69 | KM0408435K-M69 | BEARING(6000) | 1 | More Info |
| M7 | KM0408435K-M7 | TRAY | 1 | More Info |
| M70 | KM0408435K-M70 | GEAR | 1 | More Info |
| M71 | KM0408435K-M71 | GEAR SHAFT | 1 | More Info |
| M72 | KM0408435K-M72 | BEARING(6201) | 1 | More Info |
| M73 | KM0408435K-M73 | CIRCLIP | 1 | More Info |
| M74 | KM0408435K-M74 | WASHER | 1 | More Info |
| M75 | KM0408435K-M75 | OIL SEAL | 1 | More Info |
| M76 | KM0408435K-M76 | HOLDER A | 1 | More Info |
| M77 | KM0408435K-M77 | HOLDER B | 1 | More Info |
| M78 | KM0408435K-M78 | COVER | 1 | More Info |
| M79 | KM0408435K-M79 | NUT M10 | 1 | More Info |
| M8 | KM0408435K-M8 | SCREW M5*15 | 3 | More Info |
| M80 | KM0408435K-M80 | BELLOWS | 1 | More Info |
| M81 | KM0408435K-M81 | NUT M6 | 1 | More Info |
| M82 | KM0408435K-M82 | BRACKET ASSY. | 1 | More Info |
| M9 | KM0408435K-M9 | PLATE | 1 | More Info |
