KNK Art No.: KM0408537

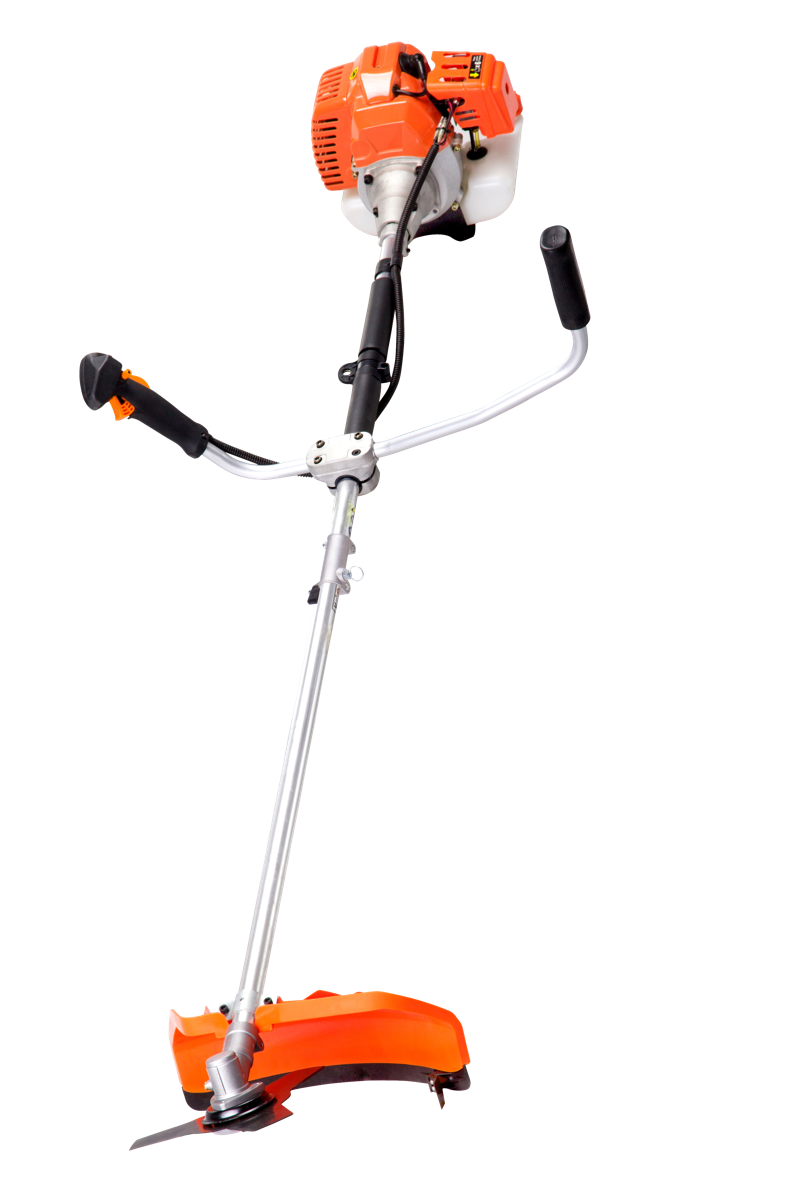

51.7CC GASOLINE BRUSH CUTTER & GRASS TRIMMER 1 SHAFT
Engine: 51.7cc
Power: 1.4kw/2.0HP
Shaft Ф: 26mm jointable
N.W./G.W: 9.5/10.5kgs
Packing: 185x30.5x21.5cm/1PC
20'FCL: 225PCS
Power: 1.4kw/2.0HP
Shaft Ф: 26mm jointable
N.W./G.W: 9.5/10.5kgs
Packing: 185x30.5x21.5cm/1PC
20'FCL: 225PCS
Related Manuals/Videos/Tables
Related Brands (Replacement Parts)
Related Categories
↘︎SPARE PARTS LIST
动力
| No. | KNK Art No. | Description | Qty | Button |
|---|
| E1 | KM0408537-E1 | SCREW | 1 | More Info |
| E10 | KM0408537-E10 | STARTER POLE | 2 | More Info |
| E11 | KM0408537-E11 | RUBBER CUSHION | 1 | More Info |
| E12 | KM0408537-E12 | START GASKET | 1 | More Info |
| E13 | KM0408537-E13 | START REEL | 1 | More Info |
| E14 | KM0408537-E14 | SPRING | 1 | More Info |
| E15 | KM0408537-E15 | * | 0 | More Info |
| E16 | KM0408537-E16 | * | 0 | More Info |
| E17 | KM0408537-E17 | * | 0 | More Info |
| E18 | KM0408537-E18 | OIL SEAL | 1 | More Info |
| E19 | KM0408537-E19 | CRANK CASE | 1 | More Info |
| E2 | KM0408537-E2 | RATCHET | 1 | More Info |
| E20 | KM0408537-E20 | CRANK CASE GASKET | 1 | More Info |
| E21 | KM0408537-E21 | BEARING 6206/P5 | 2 | More Info |
| E22 | KM0408537-E22 | CRANK SHAFT | 1 | More Info |
| E23 | KM0408537-E23 | KEY 3*13 | 1 | More Info |
| E24 | KM0408537-E24 | PIN B5*12 | 2 | More Info |
| E25 | KM0408537-E25 | RUBBER CUSHION | 2 | More Info |
| E26 | KM0408537-E26 | CRANK CASE | 1 | More Info |
| E27 | KM0408537-E27 | * | 0 | More Info |
| E28 | KM0408537-E28 | PIN B4*10 | 2 | More Info |
| E29 | KM0408537-E29 | OIL SEAL | 1 | More Info |
| E3 | KM0408537-E3 | STARTER ROPE REEL | 1 | More Info |
| E30 | KM0408537-E30 | SCREW M5*30 | 4 | More Info |
| E31 | KM0408537-E31 | FLY WHEEL | 1 | More Info |
| E32 | KM0408537-E32 | NUT M8 | 1 | More Info |
| E33 | KM0408537-E33 | IGNITION | 1 | More Info |
| E34 | KM0408537-E34 | BOLT M5*20 | 2 | More Info |
| E35 | KM0408537-E35 | CORD COMP. | 1 | More Info |
| E36 | KM0408537-E36 | WASHER B | 2 | More Info |
| E37 | KM0408537-E37 | SPRING | 1 | More Info |
| E38 | KM0408537-E38 | EXPANDER | 2 | More Info |
| E39 | KM0408537-E39 | WASHER | 2 | More Info |
| E4 | KM0408537-E4 | STARTER ROPE | 1 | More Info |
| E40 | KM0408537-E40 | SCREW PIN | 2 | More Info |
| E41 | KM0408537-E41 | FAN COVER | 1 | More Info |
| E42 | KM0408537-E42 | BOLT M5*25 | 4 | More Info |
| E43 | KM0408537-E43 | BEARING | 1 | More Info |
| E44 | KM0408537-E44 | RING | 2 | More Info |
| E45 | KM0408537-E45 | PISTON | 1 | More Info |
| E46 | KM0408537-E46 | PISTON PIN | 1 | More Info |
| E47 | KM0408537-E47 | BOLT M5*12 | 3 | More Info |
| E48 | KM0408537-E48 | PISTON RING | 2 | More Info |
| E49 | KM0408537-E49 | CYLINDER GASKET | 1 | More Info |
| E5 | KM0408537-E5 | RECOIL SPRING | 1 | More Info |
| E50 | KM0408537-E50 | CYLINDER | 1 | More Info |
| E51 | KM0408537-E51 | SCREW M5*20 | 4 | More Info |
| E52 | KM0408537-E52 | GUIDE COVER ASSY. | 1 | More Info |
| E53 | KM0408537-E53 | SPARK PLUG | 1 | More Info |
| E54 | KM0408537-E54 | SPRING | 1 | More Info |
| E55 | KM0408537-E55 | PLUG CAP | 1 | More Info |
| E56 | KM0408537-E56 | CAP | 1 | More Info |
| E57 | KM0408537-E57 | COVER | 1 | More Info |
| E58 | KM0408537-E58 | PLUG | 1 | More Info |
| E59 | KM0408537-E59 | MUFFLER GASKET | 1 | More Info |
| E6 | KM0408537-E6 | STARTER BODY | 1 | More Info |
| E60 | KM0408537-E60 | MUFFLER | 1 | More Info |
| E61 | KM0408537-E61 | BOLT | 2 | More Info |
| E62 | KM0408537-E62 | NUT M6 | 2 | More Info |
| E63 | KM0408537-E63 | MUFFLER COVER | 1 | More Info |
| E64 | KM0408537-E64 | ADMITTING PIPE GASKET | 1 | More Info |
| E65 | KM0408537-E65 | ADMITTING PIPE | 1 | More Info |
| E66 | KM0408537-E66 | CARBURETOR GASKET | 1 | More Info |
| E67 | KM0408537-E67 | CARBURETOR | 1 | More Info |
| E68 | KM0408537-E68 | SCREW ST2.9*6.5 | 1 | More Info |
| E69 | KM0408537-E69 | WASHER 3 | 1 | More Info |
| E7 | KM0408537-E7 | STARTER HANLE | 1 | More Info |
| E70 | KM0408537-E70 | CHOKE HANDLE | 1 | More Info |
| E71 | KM0408537-E71 | INSIDE COVER | 1 | More Info |
| E72 | KM0408537-E72 | CHOKE | 1 | More Info |
| E73 | KM0408537-E73 | BAFFLE | 1 | More Info |
| E74 | KM0408537-E74 | WASHER 5 | 2 | More Info |
| E75 | KM0408537-E75 | WASHER 5 | 2 | More Info |
| E76 | KM0408537-E76 | SCREW M5*55 | 2 | More Info |
| E77 | KM0408537-E77 | AIR FILTER | 1 | More Info |
| E78 | KM0408537-E78 | INSIDE COVER | 1 | More Info |
| E79 | KM0408537-E79 | * | 0 | More Info |
| E8 | KM0408537-E8 | RING | 1 | More Info |
| E80 | KM0408537-E80 | OUTSIDE COVER | 1 | More Info |
| E81 | KM0408537-E81 | SCREW M5*16 | 3 | More Info |
| E82 | KM0408537-E82 | STARTER | 1 | More Info |
| E83 | KM0408537-E83 | FUEL FILTER | 1 | More Info |
| E84 | KM0408537-E84 | FUEL PIPE | 1 | More Info |
| E85 | KM0408537-E85 | PLUG | 1 | More Info |
| E86 | KM0408537-E86 | FUEL PIPE | 1 | More Info |
| E87 | KM0408537-E87 | FUEL TANK | 1 | More Info |
| E88 | KM0408537-E88 | FUEL TANK LID | 1 | More Info |
| E89 | KM0408537-E89 | O RING | 1 | More Info |
| E9 | KM0408537-E9 | SCREW M5*20 | 5 | More Info |
| E90 | KM0408537-E90 | INLET | 1 | More Info |
| E91 | KM0408537-E91 | INSIDE COVER | 1 | More Info |
| E92 | KM0408537-E92 | LID | 1 | More Info |
| E93 | KM0408537-E93 | CHAIN | 1 | More Info |
| E94 | KM0408537-E94 | FUEL TANK LID COMP. | 1 | More Info |
| E95 | KM0408537-E95 | STAND | 1 | More Info |
| E96 | KM0408537-E96 | SCREW M5*30 | 2 | More Info |
机具
| No. | KNK Art No. | Description | Qty | Button |
|---|
| M1 | KM0408537-M1 | GEAR CASE ASSY. | 1 | More Info |
| M10 | KM0408537-M10 | BOLT M6*12 | 1 | More Info |
| M11 | KM0408537-M11 | * | 0 | More Info |
| M12 | KM0408537-M12 | GEAR CASE | 1 | More Info |
| M13 | KM0408537-M13 | COVER | 1 | More Info |
| M14 | KM0408537-M14 | BEARING 6000/P5 | 1 | More Info |
| M15 | KM0408537-M15 | GEAR | 1 | More Info |
| M16 | KM0408537-M16 | GEAR SHAFT | 1 | More Info |
| M17 | KM0408537-M17 | BEARING 6002-2RS/P5 | 1 | More Info |
| M18 | KM0408537-M18 | STOP RING 32 | 1 | More Info |
| M19 | KM0408537-M19 | HOLDER A | 1 | More Info |
| M2 | KM0408537-M2 | STOP RING 26 | 1 | More Info |
| M20 | KM0408537-M20 | HOLDER B | 1 | More Info |
| M21 | KM0408537-M21 | WASHER 10 | 1 | More Info |
| M22 | KM0408537-M22 | LEFT NUT | 1 | More Info |
| M23 | KM0408537-M23 | PIN 2*16 | 1 | More Info |
| M24 | KM0408537-M24 | PIPE COMP. | 1 | More Info |
| M25 | KM0408537-M25 | * | 0 | More Info |
| M26 | KM0408537-M26 | OIL BEARING COMP. | 6 | More Info |
| M27 | KM0408537-M27 | CRIVE SHAFT | 1 | More Info |
| M28 | KM0408537-M28 | DRIVE SHAFT PIPE | 1 | More Info |
| M29 | KM0408537-M29 | CLUTCH COMP. | 1 | More Info |
| M3 | KM0408537-M3 | STOP RING 10 | 1 | More Info |
| M30 | KM0408537-M30 | CLUTCH DRUM | 1 | More Info |
| M31 | KM0408537-M31 | STOP RING 35 | 1 | More Info |
| M32 | KM0408537-M32 | BEARING 6205-2RS/P5 | 1 | More Info |
| M33 | KM0408537-M33 | STOP RING 15 | 1 | More Info |
| M34 | KM0408537-M34 | CLUTCH CASE | 1 | More Info |
| M35 | KM0408537-M35 | BOLT M6*20 | 4 | More Info |
| M36 | KM0408537-M36 | * | 0 | More Info |
| M37 | KM0408537-M37 | * | 0 | More Info |
| M38 | KM0408537-M38 | STOP RING 37 | 1 | More Info |
| M39 | KM0408537-M39 | HANG RING | 1 | More Info |
| M4 | KM0408537-M4 | BEARING 6000-2RS/P5 | 2 | More Info |
| M40 | KM0408537-M40 | HANG HANDLE | 1 | More Info |
| M41 | KM0408537-M41 | BOLT M6*16 | 2 | More Info |
| M42 | KM0408537-M42 | RING FOR LIMIT ASSY. | 1 | More Info |
| M43 | KM0408537-M43 | NUT M6 | 1 | More Info |
| M44 | KM0408537-M44 | WASHER 6 | 1 | More Info |
| M45 | KM0408537-M45 | RING FOR LIMIT | 1 | More Info |
| M46 | KM0408537-M46 | SPRING | 1 | More Info |
| M47 | KM0408537-M47 | BOLT M6*45 | 1 | More Info |
| M48 | KM0408537-M48 | * | 0 | More Info |
| M49 | KM0408537-M49 | * | 0 | More Info |
| M5 | KM0408537-M5 | PINION | 1 | More Info |
| M50 | KM0408537-M50 | LEVER ASSY. | 1 | More Info |
| M51 | KM0408537-M51 | SCREW ST2.9*18 | 4 | More Info |
| M52 | KM0408537-M52 | NUT M5 | 1 | More Info |
| M53 | KM0408537-M53 | BOX RIGHT | 1 | More Info |
| M54 | KM0408537-M54 | STOP BUTTON COMP. | 1 | More Info |
| M55 | KM0408537-M55 | CABLE COMP. | 1 | More Info |
| M56 | KM0408537-M56 | TIBE | 1 | More Info |
| M57 | KM0408537-M57 | HAND GRIP | 1 | More Info |
| M58 | KM0408537-M58 | SPRING | 1 | More Info |
| M59 | KM0408537-M59 | HAND GRIP | 1 | More Info |
| M6 | KM0408537-M6 | * | 0 | More Info |
| M60 | KM0408537-M60 | SPRING | 1 | More Info |
| M61 | KM0408537-M61 | HANDLE LEVER | 1 | More Info |
| M62 | KM0408537-M62 | RUBBER HANDLE | 1 | More Info |
| M63 | KM0408537-M63 | CLAMP | 2 | More Info |
| M64 | KM0408537-M64 | LIMITATION RING | 1 | More Info |
| M65 | KM0408537-M65 | BOLT M5*20 | 1 | More Info |
| M66 | KM0408537-M66 | BOLT | 2 | More Info |
| M67 | KM0408537-M67 | HANDLE FIXER LOWER PART | 1 | More Info |
| M68 | KM0408537-M68 | RUBBER CUSHION LOWER | 1 | More Info |
| M69 | KM0408537-M69 | RUBBER CUSHION UPPER | 1 | More Info |
| M7 | KM0408537-M7 | SCREW M6*20 | 1 | More Info |
| M70 | KM0408537-M70 | HANDLE FIXER MIDDLE PART | 1 | More Info |
| M71 | KM0408537-M71 | CLOCK PIN | 1 | More Info |
| M72 | KM0408537-M72 | BOX LEFT | 1 | More Info |
| M73 | KM0408537-M73 | * | 0 | More Info |
| M74 | KM0408537-M74 | * | 0 | More Info |
| M75 | KM0408537-M75 | * | 0 | More Info |
| M76 | KM0408537-M76 | * | 0 | More Info |
| M77 | KM0408537-M77 | * | 0 | More Info |
| M78 | KM0408537-M78 | * | 0 | More Info |
| M79 | KM0408537-M79 | NUT M6 | 1 | More Info |
| M8 | KM0408537-M8 | * | 0 | More Info |
| M80 | KM0408537-M80 | BOLT M6*16 | 1 | More Info |
| M81 | KM0408537-M81 | SCREW ST4.2*13 | 1 | More Info |
| M82 | KM0408537-M82 | HANDLE FIXER COMP. | 1 | More Info |
| M83 | KM0408537-M83 | BRACKET COMP. | 1 | More Info |
| M84 | KM0408537-M84 | NUT M5 | 2 | More Info |
| M85 | KM0408537-M85 | BRACKET | 1 | More Info |
| M86 | KM0408537-M86 | SCREW M5*30 | 2 | More Info |
| M87 | KM0408537-M87 | SAFETY GUARD | 1 | More Info |
| M88 | KM0408537-M88 | SCREW M5*16 | 4 | More Info |
| M89 | KM0408537-M89 | SCREW ST4.2*16 | 3 | More Info |
| M9 | KM0408537-M9 | SCREW M5*12 | 5 | More Info |
| M90 | KM0408537-M90 | BLADE BRACKET | 1 | More Info |
| M91 | KM0408537-M91 | BLADE | 1 | More Info |
| M92 | KM0408537-M92 | BLADE BRACKET ASSY. | 1 | More Info |
| M93 | KM0408537-M93 | SCREW M5*30 | 1 | More Info |
| M94 | KM0408537-M94 | SPRING | 1 | More Info |
| M95 | KM0408537-M95 | BUTTON | 1 | More Info |
| M96 | KM0408537-M96 | SCREW ST2.9*13 | 1 | More Info |
| M97 | KM0408537-M97 | HANDLE FIXER UPPER PART | 1 | More Info |
| M98 | KM0408537-M98 | BOLT | 4 | More Info |
