KM0407E04 ELECTRIC SPRAYER Working Capacity: 4L Tank Material: PE Packing: 1pcs color box Valtage:220V Rotate:20000rpm Flow rate: Max 5gallon H Size:36.5×28.5×45cm N.W.:3.8kg

inquiry wholesale price

KNKPOWER HOT OFFER
KNK Art No.: KM0407E04

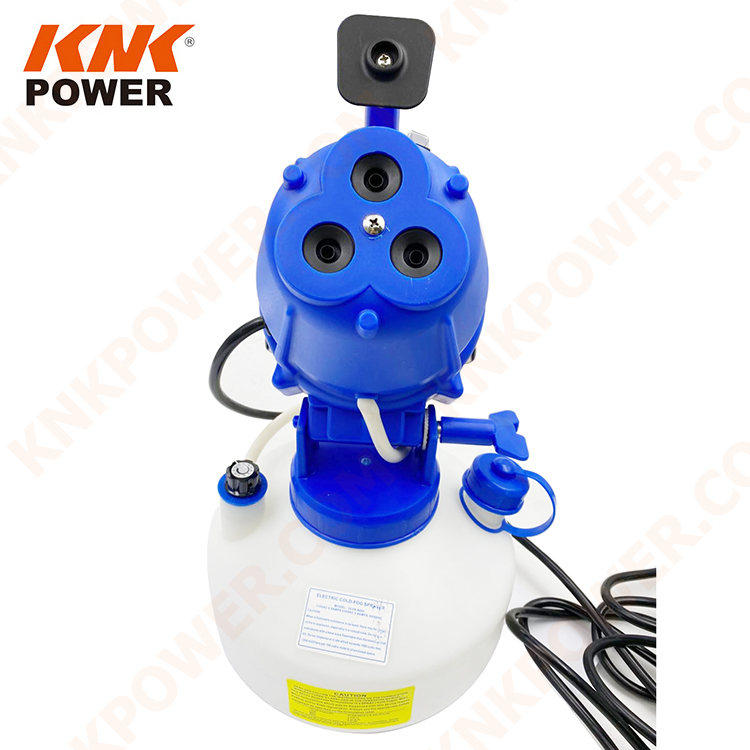

ELECTRIC SPRAYER
Working Capacity: 4L
Tank Material: PE
Packing: 1pcs/color box
Valtage: 220V
Rotate: 20000rpm
Flow rate: Max 5gallon/H
Size: 36.5×28.5×45cm
N.W.: 3.8kg
Product Net Weight
3800g ≈ 3.8 kgs ≈ 134.04oz ≈ 8.38lbs
Related Manuals/Videos/Tables
Related Brands (Replacement Parts)
KNK
Related Categories
↘︎SPARE PARTS LIST
No. KNK Art No. Description Qty Button
1 KM0407E04-1 TANK 1 More Info
2 KM0407E04-2 LABEL 1 More Info
3 KM0407E04-3 CAP ASSEMBLY 1 More Info
4 KM0407E04-4 CLEVIS 1 More Info
5 KM0407E04-5 LABEL, 220V 1 More Info
6 KM0407E04-6 STRAIN CONNECTOR 1 More Info
7 KM0407E04-7 POWER CORD 1 More Info
8 KM0407E04-8 TAG 1 More Info
9 KM0407E04-9 SCREW 1 More Info
10 KM0407E04-10 SCREW 1 More Info
11 KM0407E04-11 HAND STOP 1 More Info
12 KM0407E04-12 HOUSING 1 More Info
13 KM0407E04-13 SWITCH 1 More Info
14 KM0407E04-14 NOZZLE ASSEMBLY 1 More Info
15 KM0407E04-15 GASKET 1 More Info
16 KM0407E04-16 WIRE ASSEBMLY 2 More Info
17 KM0407E04-17 WASHER 1 More Info
18 KM0407E04-18 SAPCER 1 More Info
19 KM0407E04-19 GASKET 1 More Info
20 KM0407E04-20 COVER 1 More Info
21 KM0407E04-21 SCREW 2 More Info
22 KM0407E04-22 SCREW 4 More Info
23 KM0407E04-23 MOTOR, BLOWER ASSEMBLY 1 More Info
24 KM0407E04-24 SCREW 1 More Info
25 KM0407E04-25 NUT 1 More Info
26 KM0407E04-26 WASHER 1 More Info
27 KM0407E04-27 WASHER 1 More Info
28 KM0407E04-28 LOCKING HANDLE 1 More Info
29 KM0407E04-29 O-RING 1 More Info
30 KM0407E04-30 SPRING 1 More Info
31 KM0407E04-31 TUBE 1 More Info
32 KM0407E04-32 GUARD, TUBE 1 More Info
33 KM0407E04-33 LABEL 1 More Info
34 KM0407E04-34 WARNING LABEL 1 More Info
35 KM0407E04-35 LABEL 1 More Info
36 KM0407E04-36 KNOB ASSEMBLY 1 More Info
37 KM0407E04-37 VALVE INDICATOR 1 More Info
38 KM0407E04-38 VALVE ASSEMBLY 1 More Info
39 KM0407E04-39 BRACKET 2 More Info
