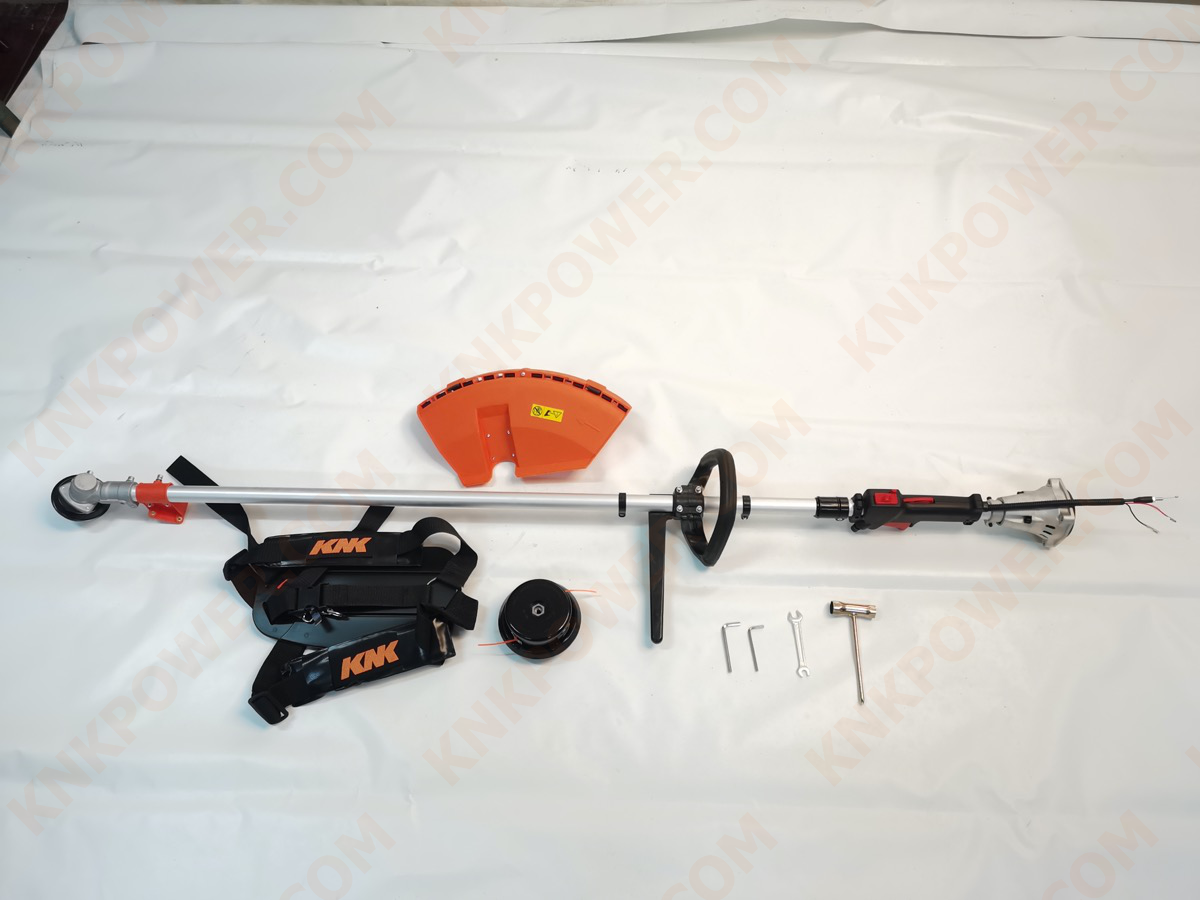

knkpower [22649] BRUSH CUTTER MACHINERY PART COMP. Load image into Gallery viewer,

63-01F BRUSH CUTTER MACHINERY PART COMP. Pipe:Silver colour 1500*28*1.5 mm SHAFT:1550*8 mm (9T*9T) Throttle Control: Black handle with red knob and red PANTONE safety switch – Cable 24 cm Gear case:Aluminum satin finished Clutch DRUM:Double bearing - Hole

inquiry wholesale price
KNK Art No.: 63-01F
BRUSH CUTTER MACHINERY PART COMP.
Pipe: Silver colour 1500*28*1.5 mm SHAFT: 1550*8 mm (9T*9T)
Throttle Control: Black handle, with red knob and red PANTONE safety switch – Cable 24 cm
Gear case: Aluminum satin finished
Clutch DRUM: Double bearing - Hole Distance: 71x71mm – 28 mm x9T – silver colour
Bale Handle: Black colour – adaptable for Ø 28 mm
Internal keper: 6 pcs - SIZE: φ28.5mm*φ8mm – black colour with SS bearin
Trimmer line head: Ø130 mm - M10X1.25 mm - LINE: MAX DIA.: 2.4 mm - MAX LENGTH: 2.5mt
EASY COIL TYPE
Safety guard: Red PANTONE and Black colou
Harness: Black color – NO brand
