KNK Art No.: KM1E36F

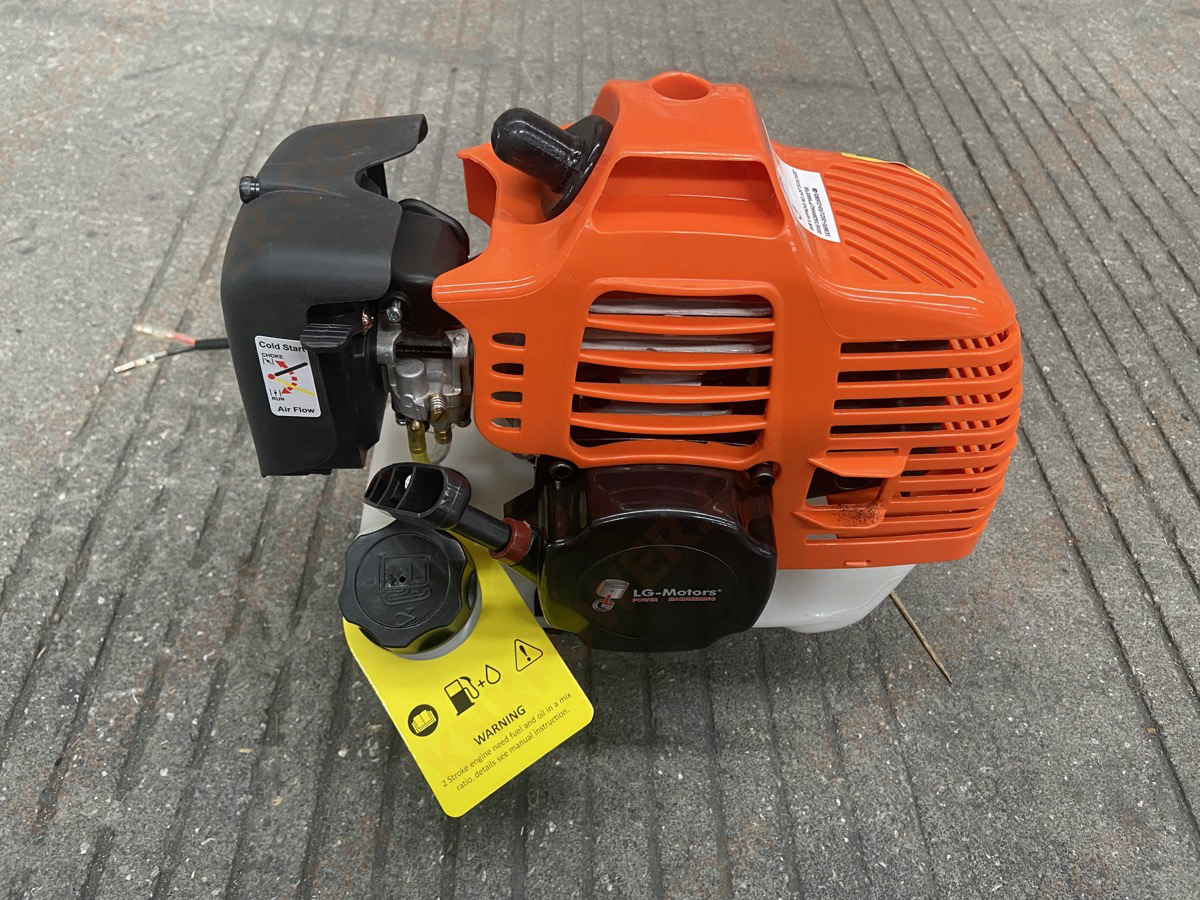

32.6CC GASOLINE ENGINE
Displacement/bore x stroke: 32.6cc/36x32mm
Max power: 0.9kw/1.2HP
Fuel consumption: ≤680g/kwh
Fuel tank: 0.75L
N.W.: 3.4kgs
packing: 29x25x24cm
20'FCL: 1700PCS
Max power: 0.9kw/1.2HP
Fuel consumption: ≤680g/kwh
Fuel tank: 0.75L
N.W.: 3.4kgs
packing: 29x25x24cm
20'FCL: 1700PCS
Product Net Weight
3400g ≈ 3.4 kgs ≈ 119.93oz ≈ 7.5lbs
Related Brands (Replacement Parts)
Related Categories
↘︎SPARE PARTS LIST
| No. | KNK Art No. | Description | Qty | Button |
|---|
| 01 | KM1E36F-01 | SCREW | 1 | More Info |
| 02 | KM1E36F-02 | RATCHET | 1 | More Info |
| 03 | KM1E36F-03 | STARTER ROPE REEL | 1 | More Info |
| 04 | KM1E36F-04 | STARTER ROPE | 1 | More Info |
| 05 | KM1E36F-05 | RECOIL SPRING | 1 | More Info |
| 06 | KM1E36F-06 | STARTER BODY | 1 | More Info |
| 07 | KM1E36F-07 | SCREW M5*20 | 5 | More Info |
| 08 | KM1E36F-08 | STARTER HANDLE | 1 | More Info |
| 09 | KM1E36F-09 | RING | 1 | More Info |
| 10 | KM1E36F-10 | SPRING | 1 | More Info |
| 11 | KM1E36F-11 | STARTER POLE | 2 | More Info |
| 12 | KM1E36F-12 | STARTER | 1 | More Info |
| 13 | KM1E36F-13 | STARTER GASKET | 1 | More Info |
| 14 | KM1E36F-14 | STARTER REEL | 1 | More Info |
| 15 | KM1E36F-15 | OIL SEAL | 1 | More Info |
| 16 | KM1E36F-16 | CRANK CASE | 1 | More Info |
| 17 | KM1E36F-17 | CRANK CASE GASKET | 1 | More Info |
| 18 | KM1E36F-18 | BEARING 6201/P5 | 2 | More Info |
| 19 | KM1E36F-19 | CRANK SHAFT | 1 | More Info |
| 20 | KM1E36F-20 | KEY 3*5*13 | 1 | More Info |
| 21 | KM1E36F-21 | PIN B4*10 | 2 | More Info |
| 22 | KM1E36F-22 | CRANK CASE | 1 | More Info |
| 23 | KM1E36F-23 | SCERW M5*30 | 4 | More Info |
| 24 | KM1E36F-24 | 1 | More Info | |
| 25 | KM1E36F-25 | FLAT WASHER | 1 | More Info |
| 26 | KM1E36F-26 | WAVE WASHER | 1 | More Info |
| 27 | KM1E36F-27 | NUT M8 | 1 | More Info |
| 28 | KM1E36F-28 | 1 | More Info | |
| 29 | KM1E36F-29 | WIRE | 1 | More Info |
| 30 | KM1E36F-30 | BOLT M5*20 | 6 | More Info |
| 31 | KM1E36F-31 | FLAT WASHER | 2 | More Info |
| 32 | KM1E36F-32 | SPRING | 1 | More Info |
| 33 | KM1E36F-33 | EXPANDER | 2 | More Info |
| 34 | KM1E36F-34 | WAVE WASHER | 2 | More Info |
| 35 | KM1E36F-35 | SCREW PIN | 2 | More Info |
| 37 | KM1E36F-37 | FAN COVER | 1 | More Info |
| 39 | KM1E36F-39 | NEEDLE BEARING | 1 | More Info |
| 40 | KM1E36F-40 | RING | 2 | More Info |
| 41 | KM1E36F-41 | PISTON PIN | 1 | More Info |
| 42 | KM1E36F-42 | PISTON | 2 | More Info |
| 43 | KM1E36F-43 | PISTON RING | 2 | More Info |
| 44 | KM1E36F-44 | CYLINDER GASKET | 1 | More Info |
| 45 | KM1E36F-45 | CYLINDER | 1 | More Info |
| 46 | KM1E36F-46 | SCREW M5*18 | 4 | More Info |
| 47 | KM1E36F-47 | GUIDE COVER | 1 | More Info |
| 48 | KM1E36F-48 | SPARK PLUG | 1 | More Info |
| 49 | KM1E36F-49 | SPRING | 1 | More Info |
| 50 | KM1E36F-50 | PLUG CAP | 1 | More Info |
| 51 | KM1E36F-51 | CAP | 1 | More Info |
| 52 | KM1E36F-52 | PLUG | 1 | More Info |
| 53 | KM1E36F-53 | COVER | 1 | More Info |
| 54 | KM1E36F-54 | MUFFLER GASKET | 1 | More Info |
| 55 | KM1E36F-55 | MUFFLER | 1 | More Info |
| 56 | KM1E36F-56 | SCREW M5*12 | 3 | More Info |
| 57 | KM1E36F-57 | BOLT | 2 | More Info |
| 59 | KM1E36F-59 | MUFFLER COVER | 1 | More Info |
| 60 | KM1E36F-60 | ADMMITING PIPE GASKET | 1 | More Info |
| 61 | KM1E36F-61 | ADMITTING PIPE | 1 | More Info |
| 62 | KM1E36F-62 | CARBURETOR GASKET | 1 | More Info |
| 63 | KM1E36F-63 | CARBURETOR | 1 | More Info |
| 64 | KM1E36F-64 | CHOKER HANDLE | 1 | More Info |
| 67 | KM1E36F-67 | CLEANER INSIDE COVER | 1 | More Info |
| 68 | KM1E36F-68 | SCREW M5*50 | 2 | More Info |
| 69 | KM1E36F-69 | CHOKER | 1 | More Info |
| 70 | KM1E36F-70 | SCREW ST4.2*12 | 1 | More Info |
| 71 | KM1E36F-71 | AIR FILTER | 1 | More Info |
| 72 | KM1E36F-72 | CLEANER OUTSIDE COVER | 1 | More Info |
| 73 | KM1E36F-73 | KNOB | 1 | More Info |
| 75 | KM1E36F-75 | RUBBER COVER | 1 | More Info |
| 76 | KM1E36F-76 | FUEL FILTER | 1 | More Info |
| 77 | KM1E36F-77 | FUEL PIPE (LONG) | 1 | More Info |
| 78 | KM1E36F-78 | PLUG | 1 | More Info |
| 79 | KM1E36F-79 | FUEL PIPE (SHORT) | 1 | More Info |
| 80 | KM1E36F-80 | SCREW M5*16 | 2 | More Info |
| 81 | KM1E36F-81 | FUEL TANK | 1 | More Info |
| 82 | KM1E36F-82 | CHAIN | 1 | More Info |
| 83 | KM1E36F-83 | END COVER | 1 | More Info |
| 84 | KM1E36F-84 | INSIDE COVER | 1 | More Info |
| 85 | KM1E36F-85 | INLET | 1 | More Info |
| 86 | KM1E36F-86 | O RING | 1 | More Info |
| 87 | KM1E36F-87 | FUEL TANK LID | 1 | More Info |
| 88 | KM1E36F-88 | FUEL TANK LID ASSY. | 1 | More Info |
| 89 | KM1E36F-89 | RUBBER CUSHION | 2 | More Info |
| 92 | KM1E36F-92 | 1 | More Info |
